1.Technical Specifications
Industrial membrane keyboard, integrate with full functional 2 keys touch-pad.
It's designed with IP67/IK07 rated waterproof, dustproof & explosionproof features.
It has one-piece matte membrane on top, Anti-static material is for option.
71 keys, Over 2million key life cycle. Compact design and highly reliable.
It is simple to sanitize and maintain.
USB port (Type-A) interface, plug & play for common operation system, such as MS-windows / MacOS / Unix / Linux / ArmOS / Android.
2.Mechanical Features
Panel board material: PET
Base board material: Aluminum alloy
Key life cycle: 2million min.
Key press force: 2~3N
Key travel length: 0.6MM
Dimensions: 412.1*144.3*18MM
Weight: 680g
3.Environmental adaptability
Operating temperature: -40℃～+65℃,
Op. RH: 10～95%
Storage temperature: -40℃～+75℃
Storage RH: 5～95%
Protection grade: IP67 / IK07
EMC Standards:
EN55022:1988+A1:2000+A2:2003
EN55024:1988+A1:2001+A2:2003
ESD protection: 15KV
4.Keyboard Language
Defult keyboard language is US.
Optional for customized different languages, such as Spanish, French, German, Portuguese, Italian, Russian, Arabic, Persian, etc.

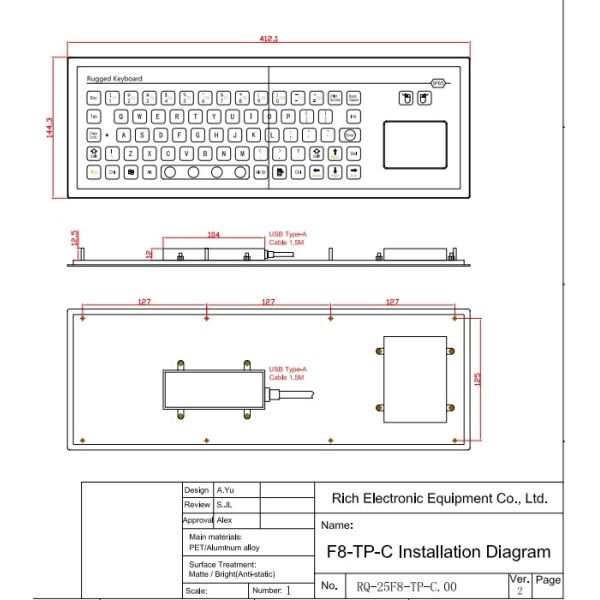

5. Installation drawing
6.APPLICATION SITE
This Keyboard is primarily intended for use for unsupervised or semi-supervised positions of varied access applications, information kiosks at universities, internet terminals and shopping malls, hotels, ticket vending machines, gas stations, banks, airports, railway-stations and other public areas, cash machines (ATMs/CDM), Internet public phones etc.

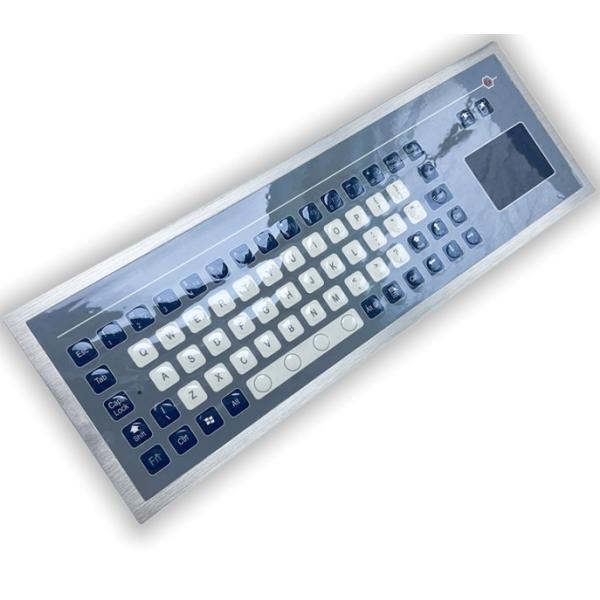

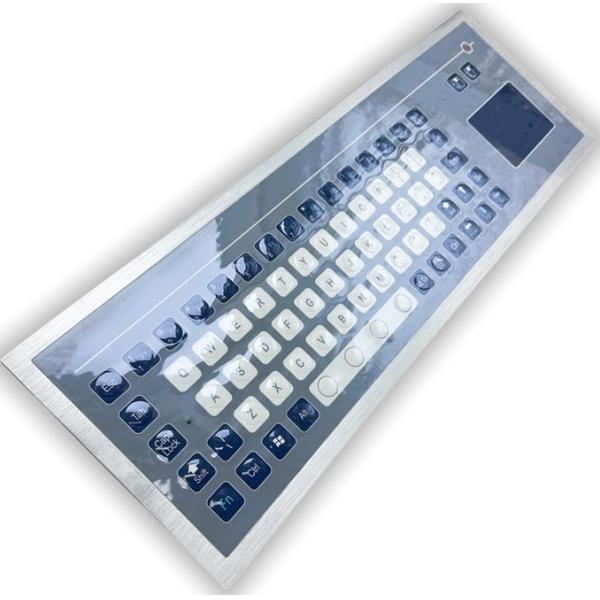

7. more pictures:
8.Please note:
All product images are photographs of the actual item. Slight color variations may occur due to lighting during photography, monitor color settings, and digital display calibrations. The actual product color should be considered final.
If you have any question about this items,please feel free to contact us for further information,thank you.
